Belden

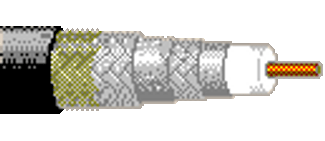

1153A - CATV Video, RG11 Type, 14 AWG BCCS, Quad Shield (Foil + 60% Braid + Foil + 40% Braid), CMP
(No reviews yet)
Write a Review
- SKU:
- 1153A
- Shipping:
- Calculated at Checkout
Description
14 AWG solid .064" bare copper-covered steel conductor, plenum, foam FEP insulation, Duofoil® (100% coverage) + TC braid shields (60% and 40% coverage), FEP jacket.
Specifications
Specifications
Product Overview
| Suitable Applications | CATV, Broadband |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 14 | Solid | BCCS - Bare Copper Covered Steel | 0.064 in | 1 |
| Conductor Count | 1 |
|---|
Insulation
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene (Foam) | Teflon® | 0.28 in |
Outer Shield
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Tinned Copper (TC) | 60% | |
| Tape | 3 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 4 | Tinned Copper (TC) | 40% |
Outer Jacket
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene | Teflon® | 0.387 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|
| 11 Ohm/1000ft | 1.8 Ohm/1000ft | 1.8 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 16.2 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.093 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] | Min. Structural Return Loss (SRL) |
|---|---|
| 5 - 400 MHz | 20 dB |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.2 dB/100ft |
| 10 MHz | 0.39 dB/100ft |
| 50 MHz | 1.2 dB/100ft |
| 100 MHz | 1.7 dB/100ft |
| 200 MHz | 2.5 dB/100ft |
| 400 MHz | 3.5 dB/100ft |
| 700 MHz | 4.6 dB/100ft |
| 900 MHz | 5.3 dB/100ft |
| 1000 MHz | 5.6 dB/100ft |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.24 ns/ft | 82% |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| Non-UL Temp Rating | 200°C |
|---|---|
| Operating Temperature Range | -70°C To +200°C |
Mechanical Characteristics
| Bulk Cable Weight | 94 lbs/1000ft |
|---|---|
| Max. Pull Tension | 212 lbs |
| Min. Bend Radius/Minor Axis | 3.9 in |
Standards
| NEC/(UL) Compliance | CL2P, CMP |
|---|---|
| CEC/C(UL) Compliance | CMP |
| RG Type | 11 |
| Series Type | 11 |
Applicable Environmental and Other Programs
| Environmental Space | Indoor - Plenum |
|---|---|
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Suitability
| Suitability - Aerial | Yes - When supported by messenger wire |
|---|---|
| Suitability - Burial | Yes |
| Suitability - Hazardous Locations | No |
| Suitability - Indoor | Yes |
| Suitability - Outdoor | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | NFPA 262 |
|---|---|
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP. |
|---|
History
| Update and Revision | Revision Number: 0.372 Revision Date: 04-14-2023 |
|---|
Documentation
Product Bulletins
- Belden Metal-Sheathed Communication Cable
- Belden Waterdog Water Resistant Direct Burial Cable
- CablePro Installation Tools
Brochures
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|Put-Up Type|Length|UPC |
Variant_Options 1153A A8R500: |
1153A A8R500|Beige, Snow|Reel|500 ft|612825107514 |
Variant_Options 1153A A8R1000: |
1153A A8R1000|Beige, Snow|Reel|1,000 ft|612825107507 |
