Belden

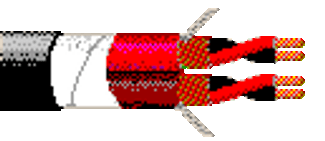

1906A - Audio Snake Cable, #24-6pr, BC, Indiv. Shielded
(No reviews yet)
Write a Review
- SKU:
- 1906A
- Shipping:
- Calculated at Checkout
Description
Audio Snake Cable, 6-24 AWG bare copper pairs, polyolefin insulation, individually shielded with double serve "French Braid", drain, numbered/color-coded PVC jackets, flexible PVC jacket
Specifications
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 24 | 41x40 | BC - Bare Copper | 0.0225 in | 6 |
| Conductor Count | 12 |
|---|---|
| Total Number of Pairs | 6 |
Insulation
| Material | Nominal Diameter |
|---|---|
| PP - Polypropylene | 0.04 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Brown |
| 2 | Red |
| 3 | Orange |
| 4 | Yellow |
| 5 | Green |
| 6 | Blue |
Inner Shield
| Type | Material | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| French Braid | Bare Copper (BC) | 95% | TC - Tinned Copper | 0.025 in | 24 | 19x26 |
Inner Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.119 in | 0.0135 in |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.449 in | 0.049 in |
Electrical Characteristics
Conductor DCR
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance |
|---|---|---|
| 7.2 Ohm/1000ft | 25.5 Ohm/1000ft | 25.5 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 26.1 pF/ft | 47.5 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.18 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 60 Ohm |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
Current
| Max. Recommended Current [A] |
|---|
| 1.05 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| Operating Temperature Range | -20°C To +60°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 101 lbs/1000ft |
|---|---|
| Max. Pull Tension | 180 lbs |
| Min. Bend Radius/Minor Axis | 4.5 in |
Standards
| CPR Euroclass | Eca |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor (Not Riser or Plenum) |
|---|---|
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2003/11/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | No |
| MII Order #39 (China RoHS) | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|
Flammability, LS0H, Toxicity Testing
| IEC Flammability | IEC 60332-1-2 |
|---|---|
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
History
| Update and Revision | Revision Number: 0.430 Revision Date: 12-19-2022 |
|---|
Documentation
Product Bulletins
Catalogs
Technical Resources
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|Put-Up Type|Length|UPC |
Variant_Options 1906A B59250: |
1906A B59250|Black, Matte|Reel|250 ft|612825126423 |
Variant_Options 1906A B59500: |
1906A B59500|Black, Matte|Reel|500 ft|612825126430 |
Variant_Options 1906A B591000: |
1906A B591000|Black, Matte|Reel|1,000 ft|612825126416 |
