Belden

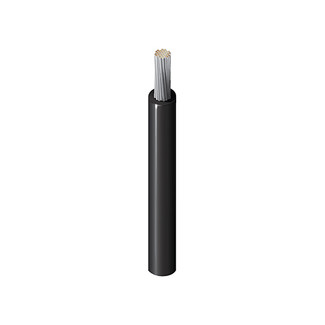

34916 - Lead Wire, #16 Str TC, CSPE Ins, AWM 3190
(No reviews yet)
Write a Review
- SKU:
- 34916
- Shipping:
- Calculated at Checkout
Description
Low Temp Rubber Lead Wire, 16AWG (26x30) Tinned Copper, CSPE Insulation, AWM 3190 CSA TYPE CL1052 300V 105C
Specifications
Specifications
Product Overview
| Suitable Applications | Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 16 | 26x30 | TC - Tinned Copper | 1 |
| Conductor Count | 1 |
|---|
Insulation
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| CSPE - Chlorosulphonated Polyethylene | 0.123 in | 0.03 in |
Electrical Characteristics
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| UL Temp Rating | 105°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 14 lbs/1000ft |
|---|---|
| Min. Bend Radius/Minor Axis | 0.5 in |
Standards
| UL AWM Style Compliance | AWM 3190 |
|---|---|
| CSA Rating | 300 V RMS, 105°C |
| CSA Type | CL1052 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
Flammability, LS0H, Toxicity Testing
| UL voltage rating | 300 V RMS |
|---|
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Footnote | F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'. |
|---|
History
| Update and Revision | Revision Number: 0.358 Revision Date: 05-05-2023 |
|---|
Documentation
Catalogs
Tools
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|Put-Up Type|Length|UPC |
Variant_Options 34916 010500: |
34916 010500|Black|Reel|500 ft|612825144267 |
Variant_Options 34916 002500: |
34916 002500|Red|Reel|500 ft|612825144250 |
