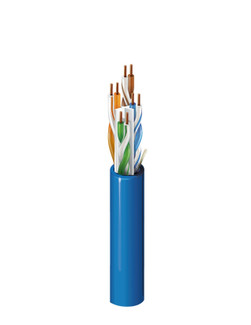

4813 - Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP

(No reviews yet) Write a Review
SKU:
4813
Shipping:
Calculated at Checkout
$0.00

Description

Category 6+ Enhanced Premise Horizontal Cable (600MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket

Specifications

Specifications

Product Overview

Suitable ApplicationsPremise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE
PatentThis product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

SizeStrandingMaterialNumber of Pairs
23 AWGSolidBC - Bare Copper4

Insulation

MaterialColor Code
PO+FEP - Polyolefin + Fluorinated Ethylene PropyleneWhite/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Outer Jacket

SeparatorMaterialMaterial Trade NameNom. DiameterRipcord
Center Member (Patented X-Spline®)PVC - Polyvinyl ChlorideFlamarrest®0.258 in (6.55 mm)Yes
Overall Cable Diameter (Nominal)0.258 in (6.55 mm)

Electrical Characteristics

Electricals

Max. Conductor DCRMax. Capacitance Unbalance
67 Ohm/km (20 Ohm/1000ft)90 pF/100m

Delay

FrequencyMax. DelayMax. Delay SkewNom. Velocity of Prop.
100 MHz537.6 ns/100m45 ns/100m70%

High Frequency

Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted) [Ohm]Max./Min. Fitted Impedance [Ohm]Min. TCL [dB]Min. ELTCTL [dB]
0.7721.7 dB/100m83.082.081.380.377.075.0102 ± 1540.037.2
11.9 dB/100m81.380.379.478.474.872.820.0100 ± 15100 ± 1540.035.0
43.5 dB/100m72.371.368.867.862.860.823.0100 ± 15100 ± 1540.023.0
84.9 dB/100m67.866.862.861.856.754.724.5100 ± 15100 ± 1540.016.9
105.5 dB/100m66.365.360.859.854.852.825.0100 ± 15100 ± 1540.015.0
167.0 dB/100m63.262.256.355.350.748.725.0100 ± 15100 ± 1538.010.9
207.8 dB/100m61.860.854.053.048.846.825.0100 ± 15100 ± 1537.09.0
258.7 dB/100m60.359.351.650.646.844.825.0100 ± 15100 ± 1536.07.0
31.259.8 dB/100m58.957.949.148.144.942.924.3100 ± 15100 ± 1535.1
62.514.1 dB/100m54.453.440.339.338.936.922.2100 ± 15100 ± 1532.0
10018.0 dB/100m51.350.333.332.334.832.820.8100 ± 15100 ± 1530.0
15522.8 dB/100m48.447.425.724.731.029.019.5100 ± 22100 ± 1528.1
20026.2 dB/100m46.845.820.619.628.826.818.7100 ± 22100 ± 1527.0
25029.6 dB/100m45.344.315.814.826.824.818.0100 ± 32100 ± 1526.0
30032.7 dB/100m44.143.111.410.425.323.317.5100 ± 32100 ± 15
35035.6 dB/100m43.142.17.56.523.921.917.0100 ± 32100 ± 15
40038.4 dB/100m42.341.33.92.922.820.816.6100 ± 32100 ± 15
45041.0 dB/100m41.540.50.521.719.716.2100 ± 32100 ± 15
50043.6 dB/100m40.839.820.818.815.9100 ± 32100 ± 15
55046.0 dB/100m40.239.220.018.015.6100 ± 32100 ± 15
60048.4 dB/100m39.638.619.217.215.4100 ± 32100 ± 15
65050.6 dB/100m39.136.118.515.515.1
75055.0 dB/100ft38.235.217.314.314.7
86059.6 dB/100ft37.334.316.113.114.3

Voltage

UL Voltage Rating
300 V (CMP), 300 V (CL3P)

Mechanical Characteristics

Temperature

UL TemperatureOperatingInstallationStorage
90°C-20°C To +75°C0°C To +50°C-20°C To +75°C

Bend Radius

Stationary Min.Installation Min.
1.0 in (25 mm)2.75 in (69.9 mm)
Max. Pull Tension25 lbs (11 kg)
Bulk Cable Weight33 lbs/1000ft

Standards and Compliance

Environmental SuitabilityPlenum, Indoor
SustainabilityProduct Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to FireNFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
CPR ComplianceCPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL ComplianceArticle 800
CEC / C(UL) ComplianceCMP
ICEA ComplianceS-116-732
IEEE ComplianceIEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA ComplianceANSI/NEMA WC-66
Data CategoryCategory 6
TIA/EIA ComplianceANSI/TIA-568.2-D Category 6
Third Party Performance VerificationCategory 6
ISO/IEC ComplianceISO/IEC 11801-1, IEC 61156-5
CENELEC ComplianceSegregation class according EN50174-2 = a
European Directive ComplianceEU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation ComplianceUKCA Mark
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Non-Plenum Number4812

Product Notes

NotesElectrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 600 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and RevisionRevision Number: 0.535 Revision Date: 06-09-2023
