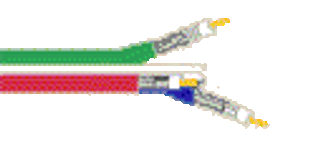

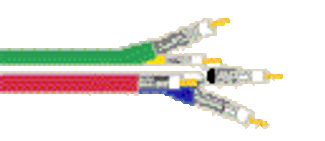

7792A - VideoFLEX® Snake, Sub-miniature, 12 Coax 23 AWG, Riser
(No reviews yet)
Write a Review
- SKU:
- 7792A
- Shipping:
- Calculated at Checkout
Description
Digital Coax Snake Cable, 12-Sub-miniature 23 AWG, solid bare copper conductors, foam HDPE core, Duofoil® + 95% tinned copper braid, Riser, PVC jacket.
Specifications
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 0.023 in | 12 |
| Conductor Count | 12 |
|---|
Insulation
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.102 in |
| Table Notes | Gas Injected |
|---|
Inner Shield
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Tinned Copper (TC) | 95% |
Inner Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.159 in |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.825 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Inner Shield DCR | Outer Conductor DCR |
|---|---|---|
| 20.1 Ohm/1000ft | 7.6 Ohm/1000ft | 7.6 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 16.5 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.106 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.4 dB/100ft |
| 3.6 MHz | 0.8 dB/100ft |
| 10 MHz | 1.2 dB/100ft |
| 71.5 MHz | 3.1 dB/100ft |
| 135 MHz | 3.8 dB/100ft |
| 270 MHz | 5.4 dB/100ft |
| 360 MHz | 6.2 dB/100ft |
| 540 MHz | 7.7 dB/100ft |
| 720 MHz | 9.1 dB/100ft |
| 750 MHz | 9.5 dB/100ft |
| 1000 MHz | 10.5 dB/100ft |
| 1500 MHz | 13 dB/100ft |
| 2500 MHz | 16.9 dB/100ft |
| 3000 MHz | 18.5 dB/100ft |
| 4500 MHz | 24.6 dB/100ft |
| 6000 MHz | 28.97 dB/100ft |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.24 ns/ft | 83% |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| Non-UL Temp Rating | 75°C |
|---|---|
| UL Temp Rating | 60°C |
| Operating Temperature Range | -35°C To +75°C |
Mechanical Characteristics
| Bulk Cable Weight | 310 lbs/1000ft |
|---|---|
| Max. Pull Tension | 432 lbs |
| Min. Bend Radius/Minor Axis | 8.5 in |
Standards
| NEC/(UL) Compliance | CMR |
|---|---|
| CEC/C(UL) Compliance | CMG |
| CPR Euroclass | Eca |
| RG Type | Mini 59 |
Applicable Environmental and Other Programs
| Environmental Space | Indoor/Outdoor |
|---|---|
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU CE Mark | Yes |
| MII Order #39 (China RoHS) | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|---|
| Suitability - Outdoor | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL1666 Vertical Shaft |
|---|---|
| IEC Flammability | IEC 60332-1-2 |
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP. |
|---|
History
| Update and Revision | Revision Number: 0.400 Revision Date: 12-19-2022 |
|---|
Documentation
Brochures and Guides
All Resources
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|Put-Up Type|Length|UPC |
Variant_Options 7792A B59500: |
7792A B59500|Black, Matte|Reel|500 ft|612825355434 |
Variant_Options 7792A B591000: |
7792A B591000|Black, Matte|Reel|1,000 ft|612825355373 |
