Belden

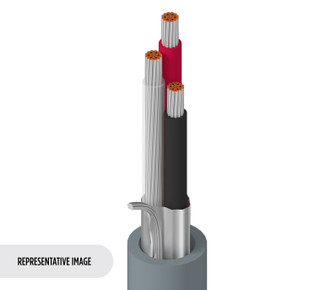

8770NH - Electronic, 3C #18 Str TC, PO ins, OS, LSNH Jkt 300V
(No reviews yet)
Write a Review
- SKU:
- 8770NH
- Shipping:
- Calculated at Checkout
Description
Electronic, 3 Conductor AWG 18 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil(s) or Copper Tape(s) shielding, LSZH / FRNC jacket , 300V
Specifications
Specifications
Product Overview
| Suitable Applications | Audio, Control & Instrumentation cable; For data transmission applications |
|---|
Construction Details
Conductor
| Element | Number of Element | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 18 AWG | 16x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE - Polyethylene | 0.018 in (0.46 mm) | 0.082 in (2.1 mm) | Black, Red, Clear |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.033 in (0.84 mm) | 0.246 in |
| Overall Cable Diameter (Nominal) | 0.246 in. |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|
| 6.5 Ohm/1000ft | 78.7 pF/m (24.0 pF/ft) | 157.5 pF/m (48.01 pF/ft) | 69 Ohm | 66% | 4.8 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating | Installation |
|---|---|---|
| 75°C | -20°C To +75°C | -15°C To +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.46 in (62.5 mm) | 2.46 in |
| Max. Pull Tension | 100 lbs (45 kg) |
|---|---|
| Bulk Cable Weight | 37 lbs/1000ft |
Standards and Compliance
| Environmental Suitability | Indoor, Non-Halogenated |
|---|---|
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4 |
| CPR Compliance | CPR Euroclass: Dca-s1,d1,a1 |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 21305 |
| CEC / C(UL) Compliance | CMG |
| ISO/IEC Compliance | IEC 61034-2 - Smoke Density Min Transmittance = 60% |
| European Halogen Free Standards | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.311 Revision Date: 12-20-2022 |
|---|
Documentation
Product Bulletins
Catalogs
Brochures
Compliance Documentation
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|Putup Type|Length|EAN |
Variant_Options 8770NH.00305: |
8770NH.00305|Chrome|Reel|305 m|8719605019240 |
