89880 - 50Ω, #12 Sol BC, FFEP Ins, Duobond IV® quad shield, PVDF Jkt, CMP

(No reviews yet) Write a Review
SKU:
89880
Shipping:
Calculated at Checkout
$0.00

Description

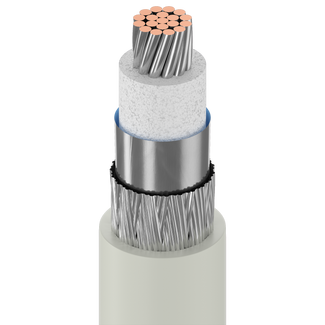

Ethernet 50 Ω 10BASE5, 12 AWG solid bare copper conductor, foam FEP insulation, Overall Duobond® II+Tinned Copper Braid (90%)+Duofoil®+Tinned Copper Braid(90%) Shield, fluorocopolymer jacket, CMP

Specifications

Specifications

Product Overview

Suitable ApplicationsThick Ethernet (IEEE 802.3 10BASE5)

Construction Details

Conductor

SizeStrandingNom. DiameterMaterial
12 AWGSolid0.086 inBC - Bare Copper

Insulation

MaterialNom. Insulation DiameterColor Code
FEP - Fluorinated Ethylene Propylene (Foam)0.245 in (6.22 mm)Clear

Outer Shield

LayerOuter Shield TypeMaterialMaterial Trade NameCoverage
1TapeTri-Laminate (Alum+Poly+Alum)Duobond® II100%
2BraidTinned Copper (TC)90%
3TapeTri-Laminate (Alum+Poly+Alum)Duofoil®100%
4BraidTinned Copper (TC)90%

Outer Jacket

MaterialNom. Diameter
PVDF - Polyvinylidene Fluoride0.365 in (9.27 mm)
Overall Cable Diameter (Nominal)0.365 in (9.27 mm)

Electrical Characteristics

Attenuation

FrequencyNom. Attenuation
1 MHz0.18 dB/100ft
5 MHz0.37 dB/100ft
10 MHz0.52 dB/100ft
50 MHz1.15 dB/100ft
100 MHz1.65 dB/100ft
200 MHz2.45 dB/100ft
400 MHz3.80 dB/100ft
700 MHz5.60 dB/100ft
900 MHz6.80 dB/100ft
1000 MHz7.20 dB/100ft

Power Rating

FrequencyMax. Power Rating
1 MHz15,900 W
5 MHz6,928 W
10 MHz4,802 W
50 MHz1,992 W
100 MHz1,344 W
200 MHz900 W
400 MHz602 W
700 MHz438 W
900 MHz382 W
1,000 MHz361 W

Electricals

Nom. Conductor DCRNom. Outer Shield DCRNom. Capacitance Cond-to-ShieldNom. Characteristic ImpedanceNom. Velocity of Prop.
1.4 Ohm/1000ft1.5 Ohm/1000ft (4.9 Ohm/km)26.0 pF/ft (85.3 pF/m)50 Ohm78%

Voltage

UL Voltage RatingVoltage Rating
300 V (CMP)600 V

Mechanical Characteristics

Temperature

UL TemperatureOperating
150°C-25°C to +150°C

Bend Radius

Installation Min.
6.0 in (150 mm)
Max. Pull Tension255 lbs (116 kg)
Bulk Cable Weight137 lbs/1000ft

Standards and Compliance

Environmental SuitabilityIndoor - Plenum, Indoor
SustainabilityCA Prop 65
Flammability / Reaction to FireNFPA 262
CPR ComplianceCPR Euroclass: Eca
NEC / UL ComplianceCL2P, CMP
CEC / C(UL) ComplianceCMP
IEEE ComplianceIEEE 802.3 10Base5
European Directive ComplianceEU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation ComplianceUKCA Mark
APAC ComplianceChina RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)DEC Part No. 17-00324-00
Non-Plenum Number9880

Product Notes

NotesRing-band stripes every 2.5 meters to aid users in tap placement.
