Belden
9952 - Electronic, 2 C #16 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
(No reviews yet)
Write a Review
- SKU:
- 9952
- Shipping:
- Calculated at Checkout
Description
Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
Specifications
Specifications
Product Overview
| Suitable Applications | MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control |
|---|
Construction Details
Conductor
| Element | Number of Element | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 16 | 19x29 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC/Nylon - Polyvinyl Chloride + Nylon | 0.016 in (0.41 mm) | 0.088 in (2.2 mm) | White, Black |
| Nylon | 0.004 in (0.10 mm) |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.25 in (6.4 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 4.3 Ohm/1000ft | 57 pF/ft (190 pF/m) | 95 pF/ft (310 pF/m) | 6.5 Amps per Conductor at 25ºC |
Voltage
| Voltage Rating |
|---|
| 600 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -20°C To +105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.5 in (64 mm) | 2.5 in (64 mm) |
| Max. Pull Tension | 64.8 lbs (29.4 kg) |
|---|---|
| Bulk Cable Weight | 38 lbs/1000ft |
Standards and Compliance
| Flammability / Reaction to Fire | IEC 60332-1-2 |
|---|---|
| CPR Compliance | CPR Euroclass: Eca |
| Military Compliance | MIL-W-16878E/17 (insulated conductor) |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.496 Revision Date: 01-20-2023 |
|---|
Documentation
Product Bulletins
Compliance Documentation
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|UPC |
Variant_Options 9952 009100: |
9952 009100|White|612825265108 |
Variant_Options 9952 0091000: |
9952 0091000|White|612825265115 |
Variant_Options 9952 009500: |
9952 009500|White|612825265122 |
Related Products

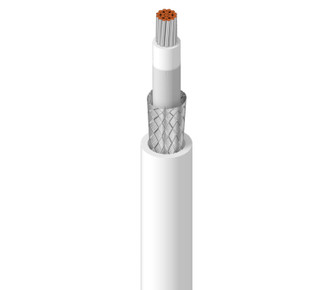

9951 - Electronic, 1 C #16 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Belden
$0.00
Electronic, 1 Conductor 16AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer JacketSpecificationsSpecificationsProduct OverviewSuitable...
9951

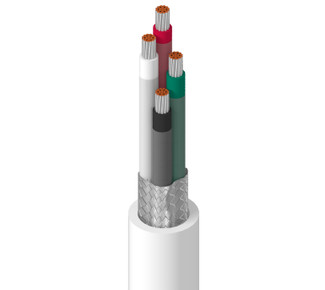

9954 - Electronic, 4 C #16 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
