Belden

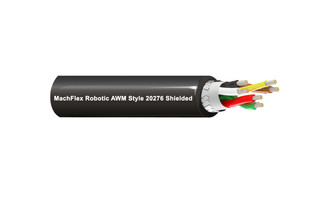

MRTA15P23S - MachFlex™ Robotic Multi-Pair Control, 15 Pr 23 AWG Str TC, ETFE Ins, TCBS, PVC Outer Jkt

(No reviews yet) Write a Review
SKU:
MRTA15P23S
Shipping:
Calculated at Checkout
$0.00

Description

MachFlex™ Robotic Multi-Pair Control & Signal Cable, 15 Pair 23 AWG Stranded Tinned Copper, ETFE Insulation, Tinned Copper Braid Shield, PVC Outer Jacket

Specifications

Specifications

Product Overview

Suitable ApplicationsMachFlex Robotic AWM 20276, Multi-Pair Cables are meeting the high demands of the robotic industry on the cabling of continuous moving machinery and the corresponding robotic components. These cables are specially designed for high mechanical requirements, they can withstand highly dynamic bending and torsional movements, and can be used in crucial industrial environments

Construction Details

Conductor

ElementNumber of ElementSizeStrandingMaterial
Pair(s)1523 AWGStrandedTC - Tinned Copper

Insulation

MaterialColor Code
ETFE - Ethylene TetrafluoroethyleneBlack, White, Red, Green, Yellow, Brown, Blue, Orange, Grey, Purple, Light Blue, Pink, White with Black Strips, White with Red Strips, White with Blue Strips, Yellow with Black Strips, Yellow with Red Strips, Yellow with Blue Strips, Orange with Black Strips, Orange with Blue Strips, Green with Black Strips, Purple with Black Strips, Red with Black Strips, Blue with Black Strips, Blue with Red Strips

Outer Shield

Shield TypeMaterial
BraidTinned Copper (TC)

Outer Jacket

Material
PVC - Polyvinyl Chloride
Overall Cable Diameter (Nominal)8.9 mm (0.35 in)

Electrical Characteristics

Electricals

Max. Conductor DCR
74.5 Ohm/km (22.7 Ohm/1000ft)

Voltage

UL Voltage Rating
30 V (Max. Operating Voltage)

Mechanical Characteristics

Temperature

Operating
-40°C to +80°C
Table Notes±90º Bending: Min. 8 million cycles (Speed: 60 cycles/min.; Bending radius: 7.5D); Drag Chain: Min. 25 million cycles (Traversing distance: 350mm; Speed: 70 cycles/min; Bending radius: 6D); Vertical Torsion Test +/-180⁰/m: Min. 8 million cycles; Horizontal Torsion Test +/-90⁰/m: Min. 8 million cycles.
Bulk Cable Weight169.2 kg/km (113.7 lbs/1000ft)

Standards and Compliance

Environmental SuitabilityIndoorOutdoor, Indoor, Outdoor, Oil Resistance - IRM 902 120°Cx18hrs, IRM 903 120°Cx18hrs, Oil Resistance
Flammability / Reaction to FireFT1, VW-1, IEC 60332-1-2
AWM ComplianceAWM 20276
CEC / C(UL) ComplianceCSA C22.2 No.210
European Directive ComplianceEU Directive 2011/65/EU (RoHS 2)
APAC ComplianceChina RoHS II (GB/T 26572-2011)

Product Notes

NotesSuitability -Oil Resistant : IRM 902 120℃x18hrs, IRM 903 120℃x18hrs

History

Update and RevisionRevision Number: 0.16 Revision Date: 02-02-2023
View AllClose

Additional Information

Variant_Options:
Item #|Color|Length
Variant_Options MRTA15P23S 010100M:
MRTA15P23S 010100M|Black, RAL 9005|100 m
Variant_Options MRTA15P23S 010200M:
MRTA15P23S 010200M|Black, RAL 9005|200 m
Variant_Options MRTA15P23S 010300M:
MRTA15P23S 010300M|Black, RAL 9005|300 m
Variant_Options MRTA15P23S 006100M:
MRTA15P23S 006100M|Blue, RAL 5015|100 m
Variant_Options MRTA15P23S 006200M:
MRTA15P23S 006200M|Blue, RAL 5015|200 m
Variant_Options MRTA15P23S 006300M:
MRTA15P23S 006300M|Blue, RAL 5015|300 m
Variant_Options MRTA15P23S F2V100M:
MRTA15P23S F2V100M|Gray, RAL 7032|100 m
Variant_Options MRTA15P23S F2V200M:
MRTA15P23S F2V200M|Gray, RAL 7032|200 m
Variant_Options MRTA15P23S F2V300M:
MRTA15P23S F2V300M|Gray, RAL 7032|300 m
View AllClose
