Belden

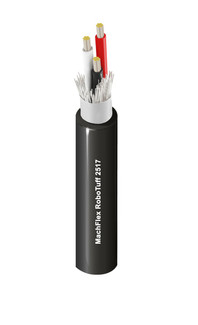

MRTC10C21U - MachFlex™ Robotic Multi-Core Control, 10 C 21 AWG Str TC, ETFE Ins, PVC Outer Jkt
- SKU:
- MRTC10C21U
- Shipping:
- Calculated at Checkout
Description
MachFlex™ Robotic Multi-Core Control & Signal Cable, 10 Conductor 21 AWG Stranded Tinned Copper, ETFE Insulation, PVC Outer Jacket
Specifications
Specifications
Product Overview
Suitable Applications | MachFlex Robotic AWM 2517, Multi-Core Cables are meeting the high demands of the robotic industry on the cabling of continuous moving machinery and the corresponding robotic components. These cables are specially designed for high mechanical requirements, they can withstand highly dynamic bending and torsional movements, and can be used in crucial industrial environments |
---|
Construction Details
Conductor
Element | Number of Element | Size | Stranding | Material |
---|---|---|---|---|
Conductor(s) | 10 | 21 AWG | Stranded | TC - Tinned Copper |
Insulation
Material | Color Code |
---|---|
ETFE - Ethylene Tetrafluoroethylene | Black, White, Red, Green, Yellow, Brown, Blue, Orange, Grey, Purple |
Outer Jacket
Material |
---|
PVC - Polyvinyl Chloride |
Overall Cable Diameter (Nominal) | 6.8 mm (0.27 in) |
---|
Electrical Characteristics
Electricals
Max. Conductor DCR |
---|
46.9 Ohm/km (14.3 Ohm/1000ft) |
Voltage
UL Voltage Rating |
---|
300 V (Max. Operating Voltage) |
Mechanical Characteristics
Temperature
Operating |
---|
-40°C to +105°C |
Table Notes | ±90º Bending: Min. 8 million cycles (Speed: 60 cycles/min.; Bending radius: 7.5D) ; Drag Chain: Min. 25 million cycles (Traversing distance: 350mm; Speed: 70 cycles/min; Bending radius: 6D) ; Vertical Torsion Test +/-180⁰/m: Min. 8 million cycles ; Horizontal Torsion Test +/-90⁰/m: Min. 8 million cycles. |
---|---|
Bulk Cable Weight | 83.9 kg/km (56.4 lbs/1000ft) |
Standards and Compliance
Environmental Suitability | IndoorOutdoor, Indoor, Outdoor, Oil Resistance - IRM 902 120°Cx18hrs, IRM 903 120°Cx18hrs, Oil Resistance |
---|---|
Flammability / Reaction to Fire | FT1, FT4, VW-1, IEC 60332-1-2 |
AWM Compliance | AWM 2517 |
CEC / C(UL) Compliance | CSA C22.2 No.210 |
European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
Notes | UL certification : UL 13. Suitability -Oil Resistant : IRM 902 120℃x18hrs, IRM 903 120℃x18hrs |
---|
History
Update and Revision | Revision Number: 0.16 Revision Date: 02-07-2023 |
---|
Documentation
Product Bulletins
- Cabling Solutions for Industrial Applications
- VFD Cables Product Bulletin
- Variable Frequency Drive Cable Solutions Brochure
- MarineTuff Offshore & Marine Cable
Catalogs
Brochures
Case Studies
Warranties
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|Length |
Variant_Options MRTC10C21U 010100M: |
MRTC10C21U 010100M|Black, RAL 9005|100 m |
Variant_Options MRTC10C21U 010200M: |
MRTC10C21U 010200M|Black, RAL 9005|200 m |
Variant_Options MRTC10C21U 010300M: |
MRTC10C21U 010300M|Black, RAL 9005|300 m |
Variant_Options MRTC10C21U 006100M: |
MRTC10C21U 006100M|Blue, RAL 5015|100 m |
Variant_Options MRTC10C21U 006200M: |
MRTC10C21U 006200M|Blue, RAL 5015|200 m |
Variant_Options MRTC10C21U 006300M: |
MRTC10C21U 006300M|Blue, RAL 5015|300 m |
Variant_Options MRTC10C21U G8U100M: |
MRTC10C21U G8U100M|Gray, RAL 7001|100 m |
Variant_Options MRTC10C21U G8U200M: |
MRTC10C21U G8U200M|Gray, RAL 7001|200 m |
Variant_Options MRTC10C21U G8U300M: |
MRTC10C21U G8U300M|Gray, RAL 7001|300 m |
