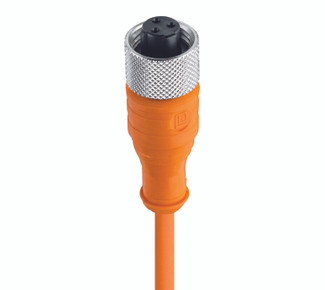

RKT 3U-226 - 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Female, straight, 3-pin, U-coded, orange body, 230 V AC/DC, 4 A; PUR black cable, 3-wires, 0.50 mm²

(No reviews yet) Write a Review
SKU:
RKT 3U-226
Shipping:
Calculated at Checkout
$0.00

Description

1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Female, straight, 3-pin, U-coded, orange body, 230 V AC/DC, 4 A; PUR black cable, 3-wires, 0.50 mm²

Specifications

Specifications

Face View

Pin 1Pin 2Pin 3
green-yellowbrownblue
Product FamilySensor / Actuator Connectors
Product Sub Family1/2"-20UNF-2B
Connector TypeCordset, single ended
Type of Contact / GenderFemale
Connector DesignStraight
Number of Pins3
CodingU (1/2"-20UNF-2B)
ShieldingUnshielded
Attachment TypeCoupling Nut
Rated Voltage250 V
Rated Voltage (UL)250 V AC
Rated Impulse Voltage2.5 kV
Operating Voltage230 V AC/DC
Rated Current*4 A
Rated Current (UL)*4 A
Contact Resistance≤ 10 mOhm
Insulation Resistance˃ 10^9 Ohm
Mating Cycles≤ 100
Ambient Temperature (Operation)*- 40 °C - + 90 °C
Operating Temperature (UL)max. + 50 °C
Protection Degree / IP Rating**IP65, IP67, IP69K
Pollution Degree3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage CategoryII acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base MaterialCuSn
Contact PlatingCu/Au
Contact Bearer MaterialTPU
Contact Bearer ColorBlack
Flammability Class (Contact Bearer)UL 94 HB
Molded Body MaterialTPU
Molded Body ColorOrange
Flammability Class (Molded Body)UL 94 HB
Attachment MaterialCuZn
Attachment PlatingNickel-plated
Gasket MaterialFKM

Circuitry

Fastening Torque (Attachment)M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number226
Conductor Size0.5 mm²
Number of Wires3
Minimal Bending Radius (Fixed Inst)˃ 5 x D
Minimal Bending Radius (Flexible Inst)˃ 10 x D
Cycles (Bending)˃ 5 M
Cycles (Torsion)˃ 5 M @ ± 360 °/1 m
Conductor materialCu
Cable Jacket MaterialPUR
Cable Jacket Colorblack
Cable Diameter Dø 4.6 ± 0.20 mm
Wire Insulation MaterialPP
Insulated Wire Diameterø 1.50 mm
Ambient Temperature (Fixed Installation)- 50 °C - + 105 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)- 25 °C - + 105 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)- 25 °C - + 60 °C
UL Cable TypeAWM: 20549
Flammability Class (Cable Jacket)DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2
Cable CharacteristicsGood microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances

Approvals

UL-FileE315587
ULUL 2238; cURus

Safety & Environmental Compliance

RoHS Compliantyes

Resistances

Halogenfreeyes
Oil ResistanceGood chemical and oil resistance

Notes

Note DeratingNotice derating
Protection Degree / IP Rating Note** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
NoteDo not connect or disconnect under load.
View AllClose

Additional Information

Variant_Options:
Item #|Item Description|Cable Length|Rated Current
Variant_Options 54204:
54204|RKT 3U-226/5 M|5 m|4 A
Variant_Options 76347:
76347|RKT 3U-226/10 M|10 m|4 A
Variant_Options 91183:
91183|RKT 3U-226/2 M|2 m|4 A
Variant_Options 10519:
10519|RKT 3U-226/25 M|25 m|4 A
