Belden

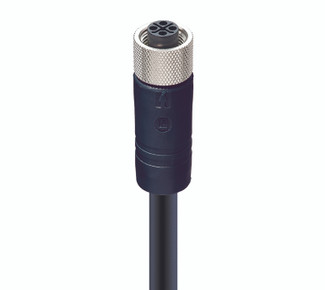

RKTS 4S-700 - M12 Power Single-Ended Cordset: Female, straight, 4-pin(3+PE), S-coded, shielded, blue body, 600 V AC/DC, 16 A; PUR black cable, 1.50 mm²

(No reviews yet) Write a Review

SKU:: RKTS 4S-700
UPC:
MPN:
Shipping:: Calculated at Checkout

$0.00

Current Stock:

Quantity:

Description
Additional Information

Description

M12 Power Single-Ended Cordset: Female, straight, 4-pin(3+PE), S-coded, shielded, blue body, 600 V AC/DC, 16 A; PUR black cable, 1.50 mm²

Specifications

Face View

Pin 1	Pin 2	Pin 3	PE
black 1	black 2	black 3	green-yellow

Product Family	Power Connector
Product Sub Family	M12 Power
Connector Type	Cordset, single ended
Type of Contact / Gender	female
Connector Design	straight
Number of Pins	4(3+PE)
Coding	S
Shielding	Shielded
Attachment Type	Coupling Nut
Rated Voltage	630 V
Rated Voltage (UL)	600 V
Rated Impulse Voltage	6.0 kV
Operating Voltage	600 V AC/DC
Rated Current*	16 A
Rated Current (UL)*	16 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-40 °C to +125 °C, notice derating
Protection Degree / IP Rating**	IP65, IP67, IP69K
Design Standard	IEC 61076-2-111
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact Base Material	CuNi
Contact Plating	Cu/Au
Contact Bearer Material	PBT GF
Contact Bearer Color	black
Flammability Class (Contact Bearer)	UL 94 V-2
Molded Body Material	TPE
Molded Body Color	blue
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Cu/Ni
Shielding Material	CuZn, plating: Ni
O-Ring Material	FKM

Circuitry

Fastening Torque (Contact Screw)	M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number	700
Conductor Size	1.50 mm²
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 4 x D
Minimal Bending Radius (Flexible Inst)	˃ 7.5 x D
Cycles (Bending)	˃ 10 M
Conductor material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black
Cable Diameter D	ø 9.4±0.20 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 2.35 mm
Inner Jacket	TPE-O
Overall Shield (Cable)	tinned copper braided screen
Ambient Temperature (Fixed Installation)	-40 °C to +80 °C
Ambient Temperature (Flex Installation)	-30 °C to +80 °C
Ambient Temperature (Fixed Installation short-term 100h)	-40 °C to +125 °C
Ambient Temperature (Drag Chain Inst)	-20 °C to +60 °C
UL Cable Type	AWM: 20939
Flammability Class (Cable Jacket)	VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1

Approvals

UL-File	E497237
UL	UL 2237; cULus

Safety & Environmental Compliance

RoHS Compliant	yes

Resistances

Halogenfree	DIN VDE 0472 T.815
Oil Resistance	HD 22.10 Appendix A, DIN EN 60811-404

Notes

Note Derating	* Notice derating
Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Documentation

Catalogs

Industrial Power Connectors

Technical Information

Product Certifications

EU Declaration of conformity

Data Sheets

Data Sheet

View AllClose

Additional Information

Variant_Options:	Item #\|Item Description\|Cable Length
Variant_Options 934849039:	934849039\|RKTS 4S-700/2 M\|2 m
Variant_Options 18615:	18615\|RKTS 4S-700/3 M\|3 m
Variant_Options 934849040:	934849040\|RKTS 4S-700/5 M\|5 m
Variant_Options 934849041:	934849041\|RKTS 4S-700/10 M\|10 m
Variant_Options 934849042:	934849042\|RKTS 4S-700/15 M\|15 m
