Description
MICROPHONE CABLE 24AWG/0.22mm² 0.22mm² PVC
Specifications
Specifications
Product Overview
| Suitable Applications | Microphone Cable |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Construction n x D |
|---|---|---|---|
| 24 | Stranded | BC - Bare Copper | 32x0.10 mm |
| Conductor Count | 2 |
|---|
Insulation
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene | 1.45 mm | 0.05 mm |
Color Chart
| Number | Color |
|---|---|
| Wire 1 | Red |
| Wire 2 | Blue |
Outer Shield
| Type | Material | Min. Coverage [%] |
|---|---|---|
| Spiral Serve / Screen | Bare Copper (BC) | 90% |
Outer Jacket
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PVC - Polyvinyl Chloride | 6.10 mm | 0.20 mm |
| Table Notes | Flexible Matte Finish Sheath |
|---|

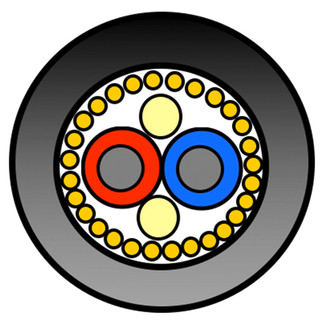

Construction and Dimensions
Cabling
| Description | Filler |
|---|---|
| 2 fillers + 2 wires twisted | Cotton yarn (2x) |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
|---|
| 78 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 60 pF/m | 110 pF/m |
Temperature Range
| Storage Temperature Range | -15°C To +60°C |
|---|---|
| Other Temp Range | -5 to +60 °C |
Mechanical Characteristics
| Min. Bend Radius During Installation | 61 mm |
|---|
Applicable Environmental and Other Programs
| Environmental Space | Indoor |
|---|
History
| Update and Revision | Revision Number: 0.163 Revision Date: 03-04-2023 |
|---|
Documentation
Product Bulletins
Catalogs
Technical Resources
Data Sheets
Additional Information
Variant_Options: |
Item #|Color|Put-Up Type|Length|EAN |
Variant_Options BE46349.10100: |
BE46349.10100|Black|Reel|100 m|8719605027344 |
Variant_Options BE46349.00500: |
BE46349.00500|Black|Reel|500 m|8719605027337 |
Variant_Options BE46349.001000: |
BE46349.001000|Black|Reel|1,000 m|8719605027313 |
Variant_Options BE46349.002000: |
BE46349.002000|Black|Reel|2,000 m|8719605027320 |
Variant_Options BE46349.13100: |
BE46349.13100|Blue|Reel|100 m|8719605027375 |
Variant_Options BE46349.15100: |
BE46349.15100|Gray|Reel|100 m|8719605027399 |
Variant_Options BE46349.15500: |
BE46349.15500|Gray|Reel|500 m|8719605185709 |
Variant_Options BE46349.11100: |
BE46349.11100|Green|Reel|100 m|8719605027351 |
Variant_Options BE46349.12100: |
BE46349.12100|Red|Reel|100 m|8719605027368 |
Variant_Options BE46349.14100: |
BE46349.14100|Yellow|Reel|100 m|8719605027382 |
