Belden

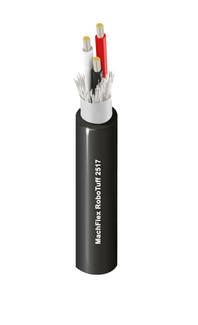

MRTB20C15U - MachFlex™ Robotic Multi-Core Control, 20 C 15 AWG Str TC, ETFE Ins, PVC Outer Jkt

(No reviews yet) Write a Review

SKU:: MRTB20C15U
UPC:
MPN:
Shipping:: Calculated at Checkout

$0.00

Current Stock:

Quantity:

Description
Additional Information

Description

MachFlex™ Robotic Multi-Core Control & Signal Cable, 20 Conductor 15 AWG Stranded Tinned Copper, ETFE Insulation, PVC Outer Jacket

Specifications

Product Overview

Suitable Applications	MachFlex Robotic AWM 2586, Multi-Core Cables are meeting the high demands of the robotic industry on the cabling of continuous moving machinery and the corresponding robotic components. These cables are specially designed for high mechanical requirements, they can withstand highly dynamic bending and torsional movements, and can be used in crucial industrial environments.

Construction Details

Conductor

Element	Number of Element	Size	Stranding	Stranding Class	Material
Conductor(s)	20	15 AWG	Stranded	Class 6	TC - Tinned Copper

Insulation

Material	Color Code
ETFE - Ethylene Tetrafluoroethylene	Black, White, Red, Green, Yellow, Brown, Blue, Orange, Grey, Purple, Light Blue, Pink, White with Black strip, White with Red strip, White with Blue strip, Yellow with Black strip, Yellow with Red strip, Yellow with Blue strip, Orange with Black strip, Orange with Blue strip

Outer Jacket

Material
PVC - Polyvinyl Chloride

Overall Cable Diameter (Nominal)	16 mm (0.63 in)

Electrical Characteristics

Electricals

Max. Conductor DCR
11.3 Ohm/km (3.44 Ohm/1000ft)

Voltage

UL Voltage Rating
600 V (Max. Operating Voltage)

Mechanical Characteristics

Temperature

Operating
‐40°C to +105°C

Table Notes	±90º Bending: Min. 8 million cycles (Speed: 60 cycles/min.; Bending radius: 7.5D) ; Drag Chain: Min. 25 million cycles (Traversing distance: 350mm; Speed: 70 cycles/min; Bending radius: 6D) ; Vertical Torsion Test +/-180⁰/m: Min. 8 million cycles ; Horizontal Torsion Test +/-90⁰/m: Min. 8 million cycles.
Bulk Cable Weight	534 kg/km (359 lbs/1000ft)

Standards and Compliance

Environmental Suitability	IndoorOutdoor, Indoor, Outdoor, Oil Resistance - IRM 902 120°Cx18hrs, IRM 903 120°Cx18hrs, Oil Resistance
Flammability / Reaction to Fire	FT1, FT4, VW-1, IEC 60332-1-2
AWM Compliance	AWM 2586
CEC / C(UL) Compliance	CSA C22.2 No.210
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	UL certification : UL 13. Suitability -Oil Resistant : IRM 902 120℃x18hrs, IRM 903 120℃x18hrs

History

Update and Revision	Revision Number: 0.16 Revision Date: 02-07-2023

Documentation

Product Bulletins

View AllClose

Additional Information

Variant_Options:	Item #\|Color\|Length
Variant_Options MRTB20C15U 010100M:	MRTB20C15U 010100M\|Black, RAL 9005\|100 m
Variant_Options MRTB20C15U 010200M:	MRTB20C15U 010200M\|Black, RAL 9005\|200 m
Variant_Options MRTB20C15U 010300M:	MRTB20C15U 010300M\|Black, RAL 9005\|300 m
Variant_Options MRTB20C15U 006100M:	MRTB20C15U 006100M\|Blue, RAL 5015\|100 m
Variant_Options MRTB20C15U 006200M:	MRTB20C15U 006200M\|Blue, RAL 5015\|200 m
Variant_Options MRTB20C15U 006300M:	MRTB20C15U 006300M\|Blue, RAL 5015\|300 m
Variant_Options MRTB20C15U G8U100M:	MRTB20C15U G8U100M\|Gray, RAL 7001\|100 m
Variant_Options MRTB20C15U G8U200M:	MRTB20C15U G8U200M\|Gray, RAL 7001\|200 m
Variant_Options MRTB20C15U G8U300M:	MRTB20C15U G8U300M\|Gray, RAL 7001\|300 m
